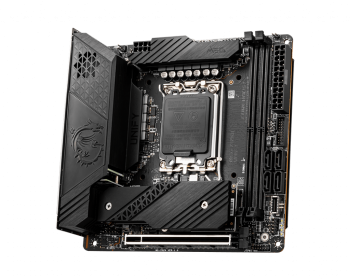

Mainboard MSI MEG Z690I UNIFY

Mã SP : 5296
Đánh giá :
0
Hỏi & đáp : 0
Lượt xem : 393
đ
đ
Trả góp 0%
Còn hàng
Cấu hình
Số lượng: +

Gọi 0933.881.610 - 02563.810.888 để được tư vấn mua hàng (Miễn phí)

Gói ưu đãi cực lớn :
 Bảo hành hàng chính hãng
Chính sách bảo hành tận nhà
 1 đổi 1 trong 7 ngày nếu lỗi kỹ thuật
Giao hàng miễn phí toàn quốc
Trả góp lãi xuất 0% qua thẻ visa
Trả góp lãi xuất thấp với HD Saison
Hỗ trợ phần mềm trọn đời
Vệ sinh máy miễn phí

MAINBOARD MSI
PROCESSOR Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors
Processor socket LGA1700
CHIPSET Intel® Z690 Chipset
MEMORY 2x DDR5 memory slots, supporting up to 64GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
EXPANSION SLOT 1x PCIe 5.0 x16 slot (From CPU)
ONBOARD GRAPHICS 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz
THUNDERBOLT 4 Intel® JHL8540 Thunderbolt™ 4 Controller
2x Thunderbolt™ 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A ,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
STORAGE 4x SATA 6Gb/s ports (From Z690 chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2 slot (From Z690 chipset)
M2_2 supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2280 storage devices
M2_3 slot (From Z690 chipset)
M2_3 supports up to PCIe 4.0 x4
Supports 2280 storage devices
M2_2~3 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Intel® Z690 Chipset:
1x USB3.2 Gen2x2 20Gbps port (1 Type-C internal connector)
2x USB 3.2 Gen 2 10Gbps ports on the back panel
6x USB 3.2 Gen 1 5Gbps ports( (4 Type-A ports on the back panel and 2 ports available through internal USB connectors)
2x USB 2.0 ports available through the internal USB connector
AUDIO Realtek® ALC4080 Codec:
7.1-Channel High Definition Audio
LAN 1x Inte® I225V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH Intel®Wi-Fi 6E:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2, FIPS, FISMA
INTERNAL CONNECTORS 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2x2 20Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
1x Front panel audio connector
1x System panel connector
1x Chassis Intrusion connector
1x TPM module connector
LED FEATURE 4x EZ Debug LED
1x 3-pin RAINBOW LED connectors
BACK PANEL PORTS DisplayPort
USB 3.2 Gen1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Thunderbolt 4 40Gbps (Type-C)
HD Audio Connectors
Clear CMOS Button
HDMI
USB 3.2 Gen2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
DIMENSIONS Mini-ITX Form Factor: 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]





support Windows 11 / Windows 10
